Implementing Double Click event in Search Grid



Q: In Search Grid Control, I want to write “double click” event but I could not find this event in Search Grid properties.  Could you show me how to implement this event?



Double Click event in Search Grid

Double click event is implemented in the Search Grid (or simple Grid) using activationAction   event handler.

The activationAction sets the action to be launched when a cell in a row is double clicked. This action is executed if and only if the cell is not editable and the corresponding column control of the cell is not an action control (hyperlink or button).



Step by Step Example

 The following example illustrates this use:

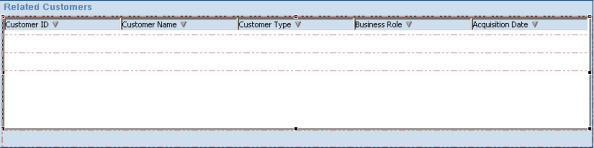

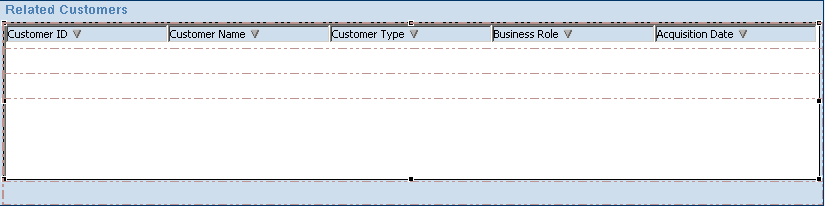

Adding A Grid

 Let’s add a grid called grdRelCustomers:





Adding the Activation Action

Now we add a new Submit action named RelCustomerSubmitAction to perform the search in the database. This action would query the database and return the data to be displayed in the grid  (in fact – the data will populated relatedCustomersTDM which is used as the Grid’s displayTDM).

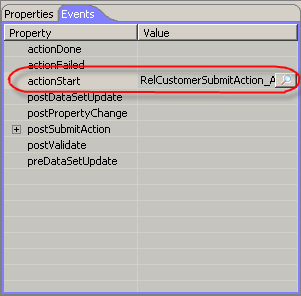

Define Activation Action actionStart Event

We now define the actionStart Event for the RelCustomerSubmitAction to handle the double click event:

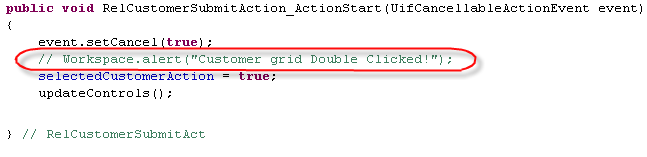

Code actionStart Event Handler

The following event handler should respond to a double click performed on the Grid:

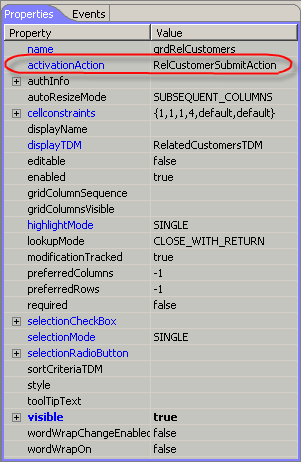

Define the Grid’s activationAction

 Back to the Grid properties, we now define the activationAction property as RelCustomerSubmitAction



The Grid activationEvent is now related to its event handler.

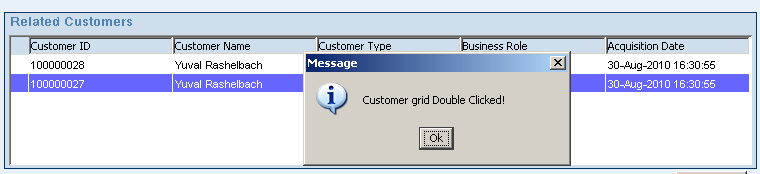

Now let’s test it at runtime:
